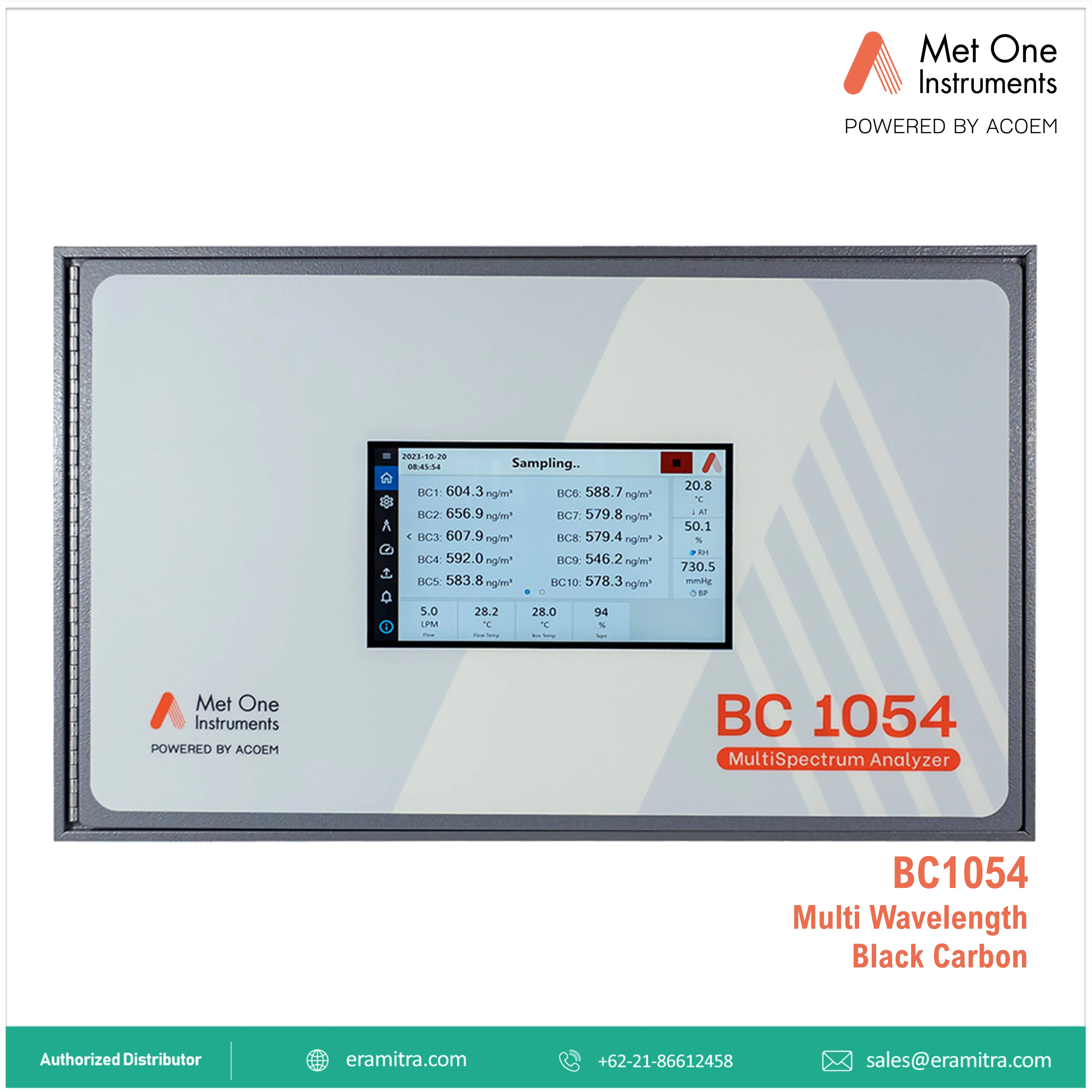

The BC 1054 Multi-spectrum Black Carbon Analyzer from Met One Instruments Powered by Acoem continuously measures the transmittance of light across filter media onto which particulate matter is accumulating and in real-time calculates the black-carbon “BC” concentrations at 10 different wavelengths ranging from the near-UV to the near-IR. By employing the same widely accepted calibration constants and principles of operation as those used in the industry standard reference monitors, the BC-1054 produces BC data with the same levels of accuracy and precision, but at a fraction of the cost.

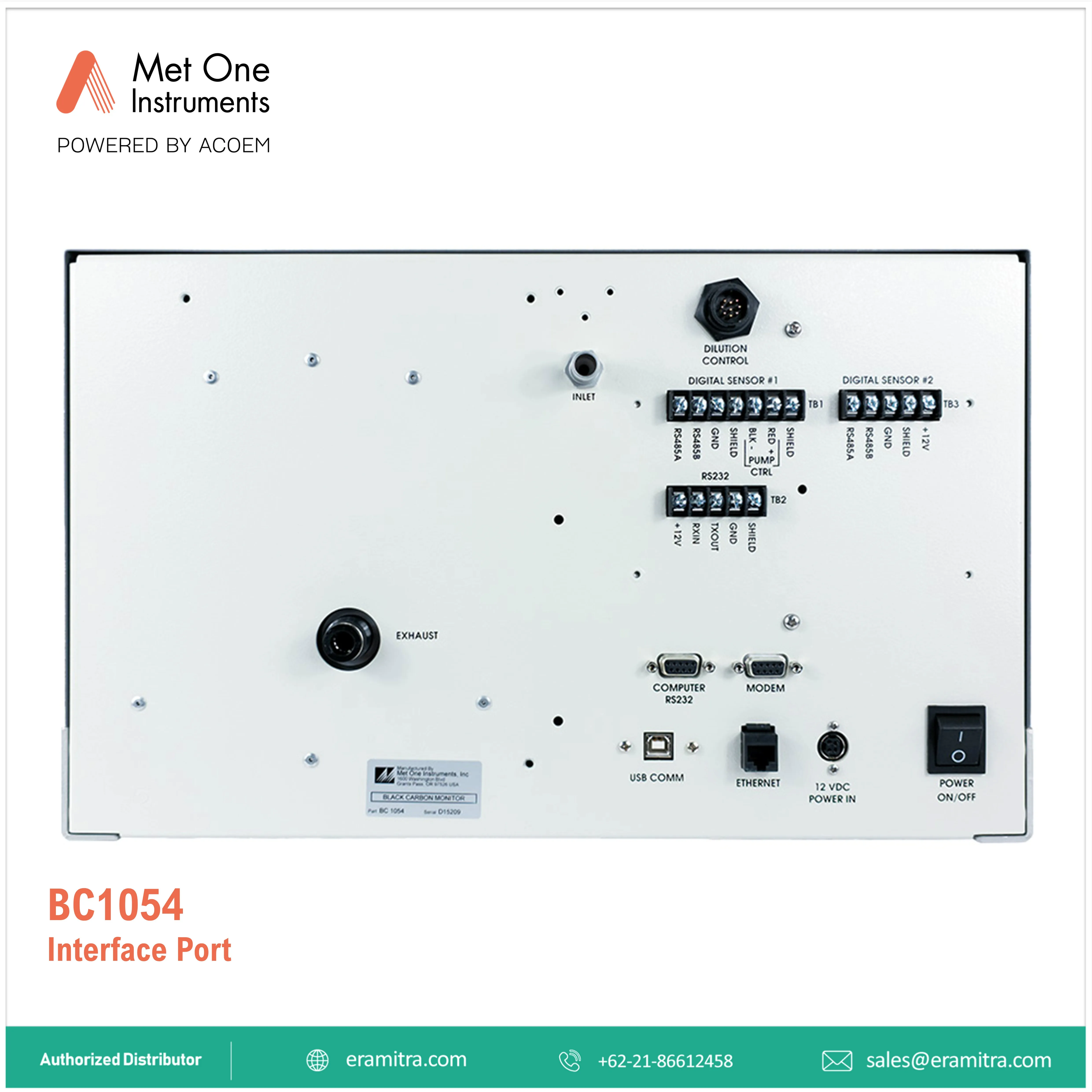

BC 1054 will directly connect with a variety of additional monitoring instruments, such as Regulatory Monitors like the BAM-1020, discrete particle size and counting modules, or a wide array of Meteorological Sensor inputs.

Operations / Interface

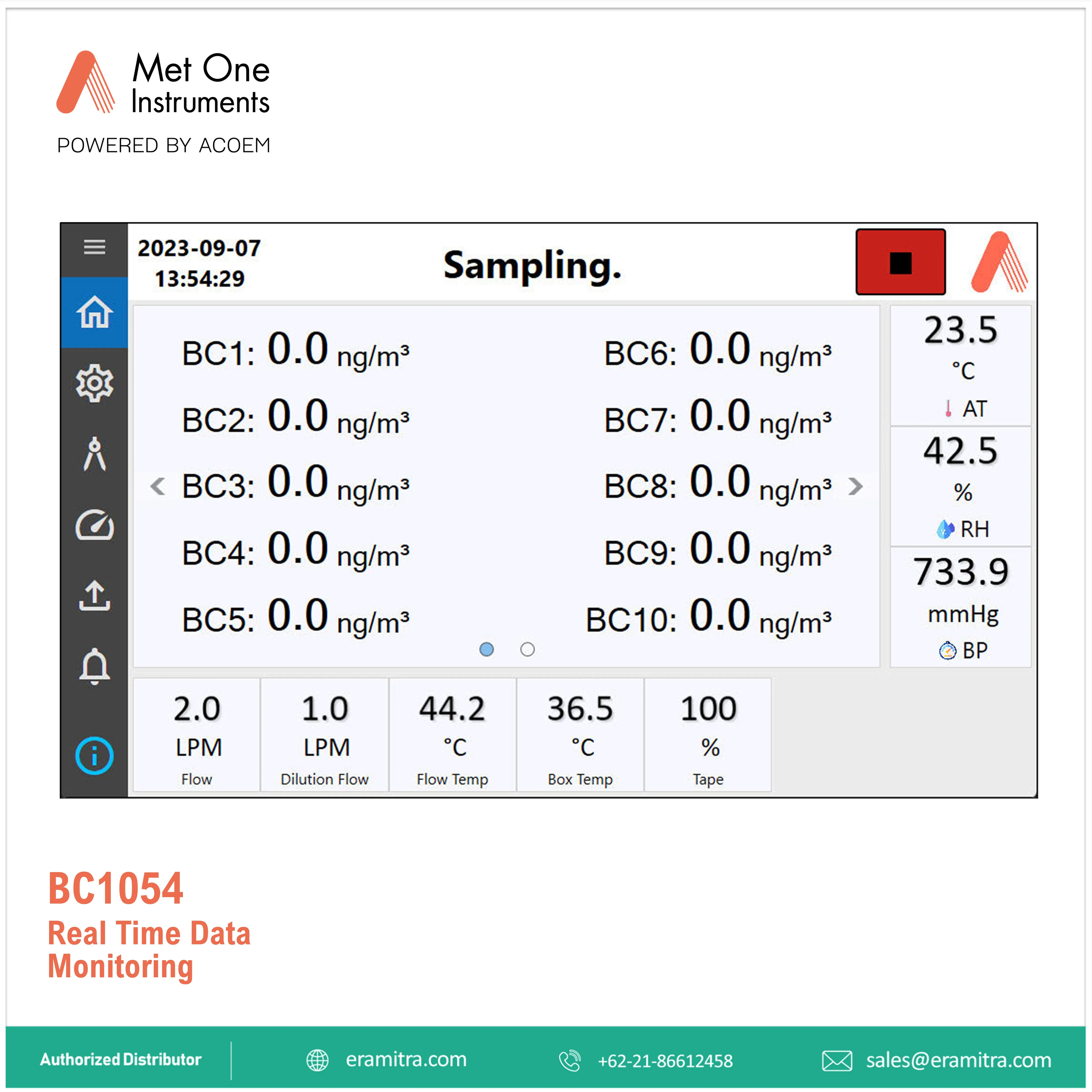

The BC 1054 automatically calculates raw and load-compensated BC concentrations at 10-wavelengths with 1-minute time resolution. More than 1-year of concentration and diagnostic data is stored.

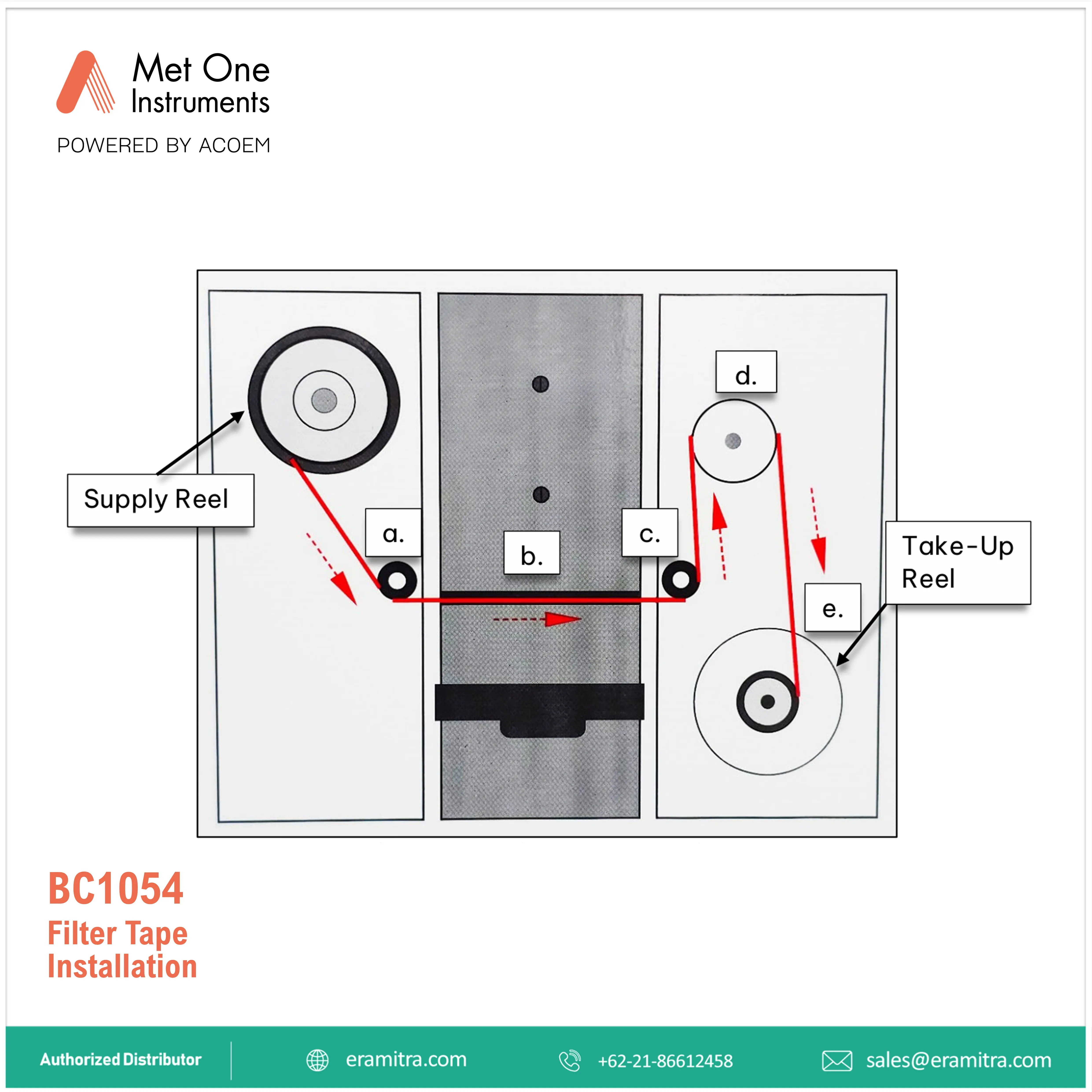

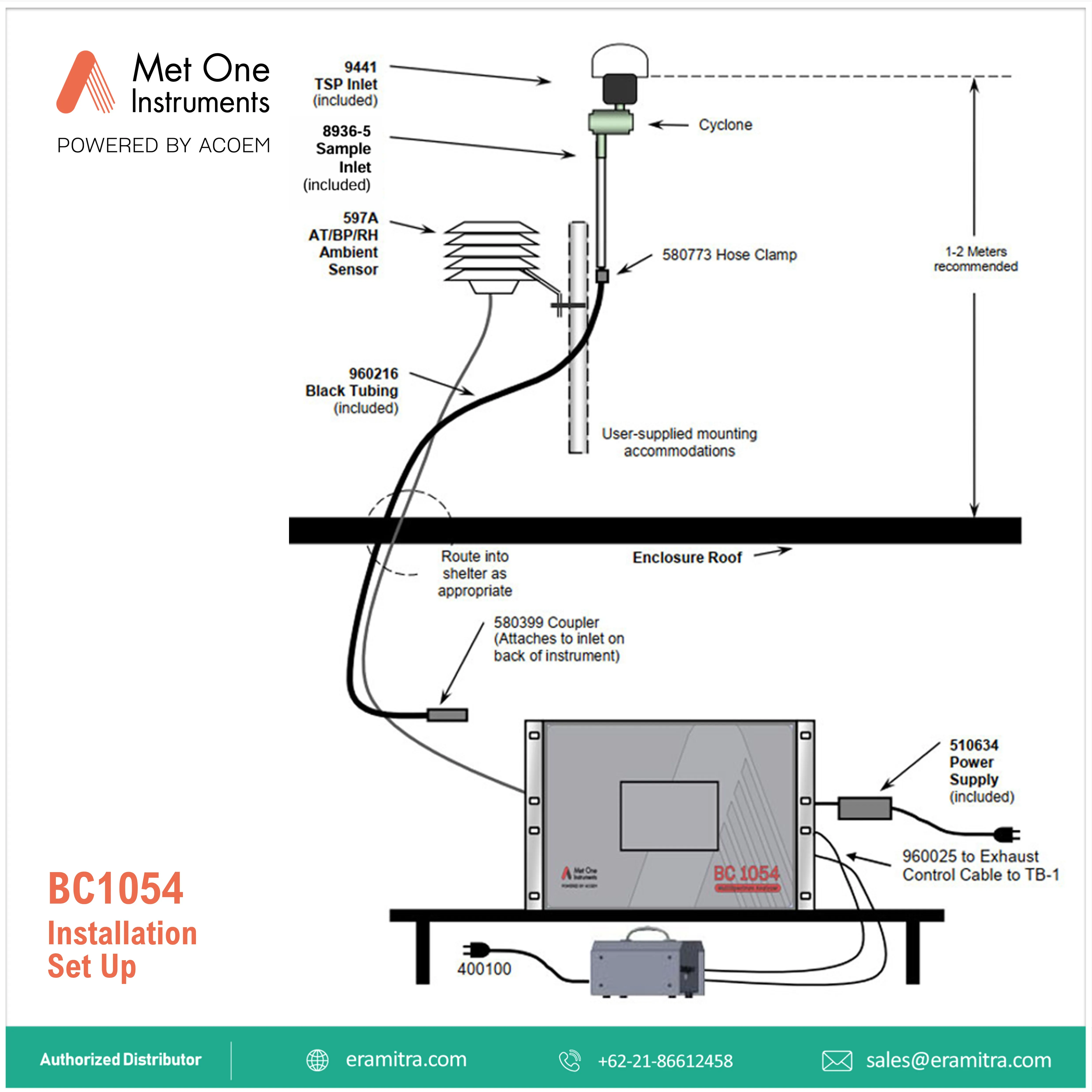

Our BC 1054 uses inexpensive filter media. It comes standard with an inlet heater for sample conditioning. The BC 1054 allows the user to sample at either 2 or 5 liters per minute. Inlets are available for TSP, PM10, PM2.5, or PM1 sampling at either flow rate.

For operation in very high concentration environments, an optional dilution flow system is available and recommended when average BC concentrations are expected to exceed 5,000-10,000 ng/m3.

The BC 1054 employs many of the resilient and reliable design features used in Met One Instruments’ BAM 1020, a tried and true technology with more than 15,000 units currently deployed worldwide.

Features

• Tape-Saving mode for economical collection of data in high-BC regions.
• Data access in near real time remotely without the need for an external data logger.
• The simple sensor design requires no flow splitting, employs a single mass flow controller, and is well suited for use with the filter media.
• Flow checks, audits, and troubleshooting processes are simple to perform.
• Actual flows are measured.
• Concentrations are calculated under actual flow conditions, but may be displayed in either actual or standard conditions.
