Measurement range: nD 1.30000-1.72000; 0-95%Brix;
Temperature control range: 10-80°C

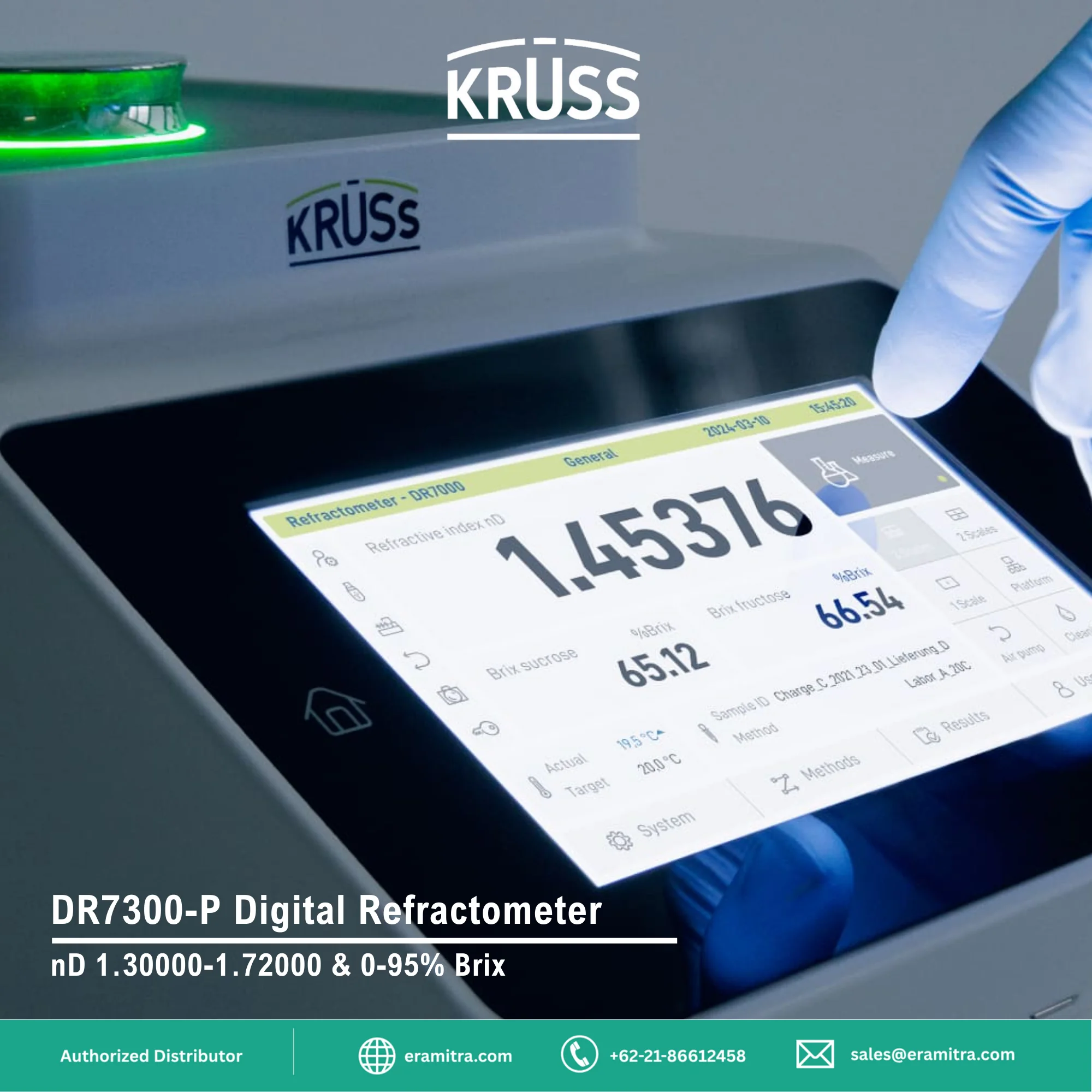

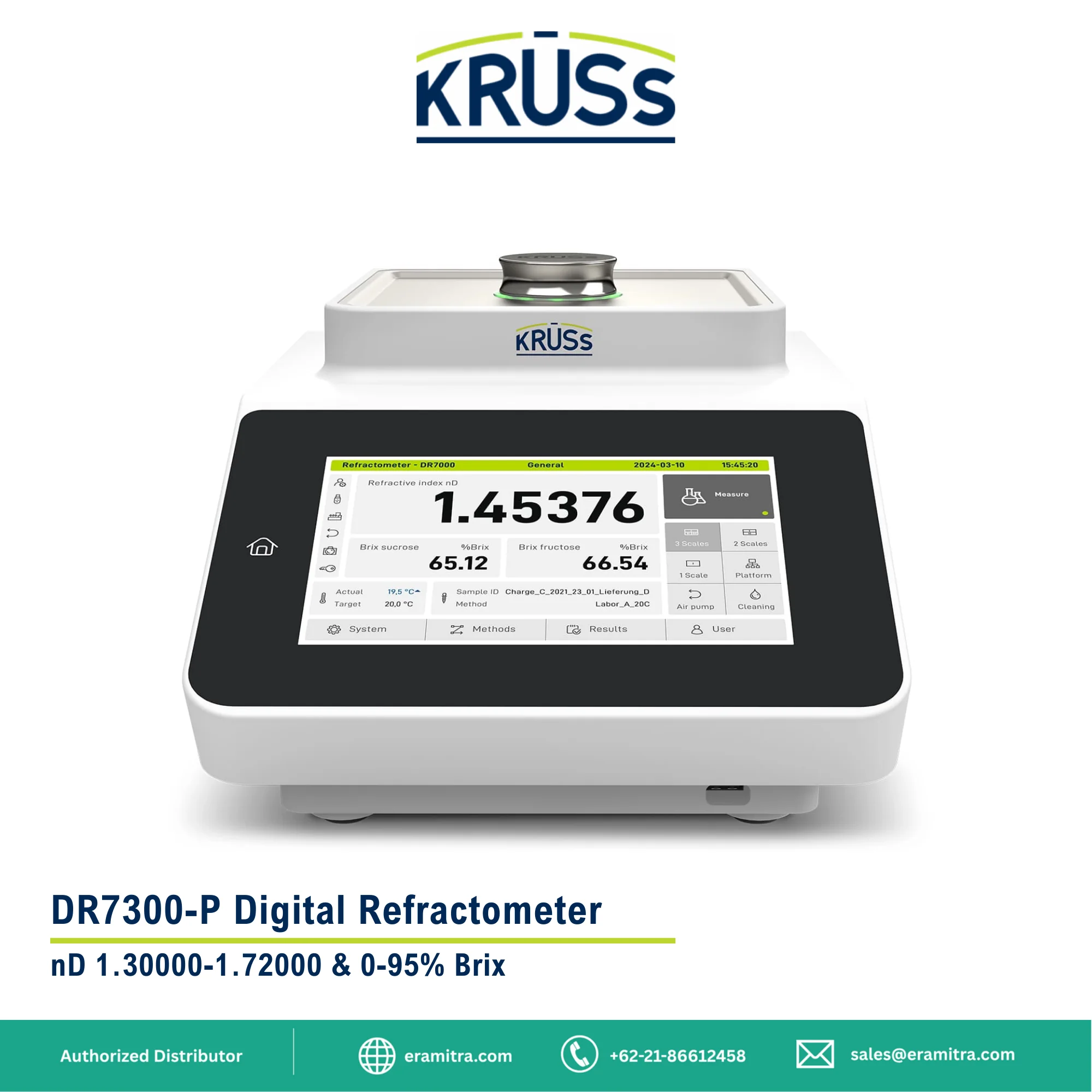

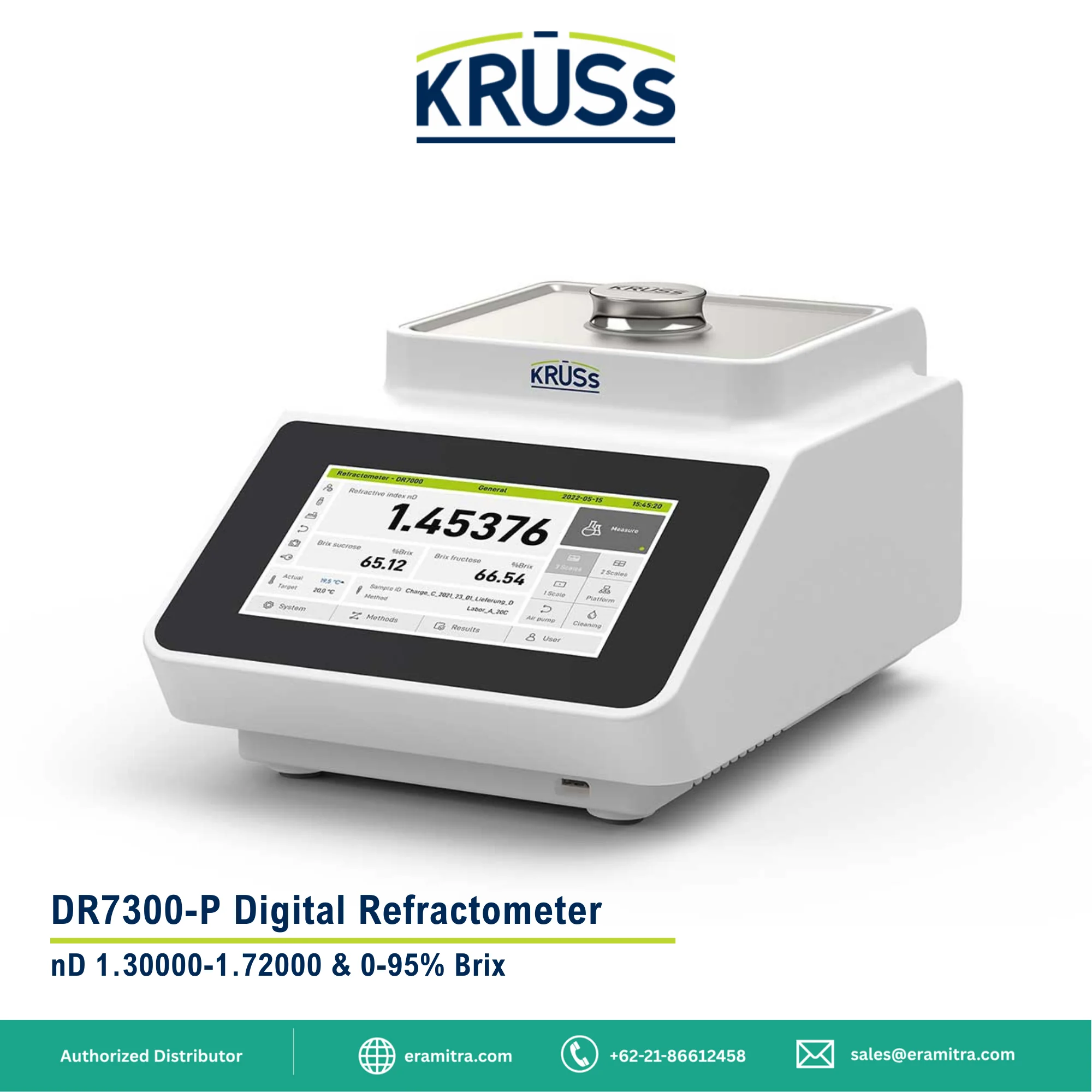

The DR7000 series devices are digital refractometers designed for measuring refractive index, %Brix or other concentrations in liquid samples. With an optical CCD sensor, Peltiertemperature control, measurement electronics, evaluation electronics and touch display, the devices contain all the components needed to carry out measurements reliably. The Operation is located directly on the device. A separate PC with software is not necessary.

The devices and their firmware meet all requirements for FDA-regulated areas (depending on the model), as well as for the European (Ph. Eur.) and American (USP) pharmacopoeia. The DR7200-P and DR7400-P models meet the requirements of CFR 21 Part 11.

MEASUREMENT

• Almost all samples are measurable
• Highly accurate, fast concentration measurement of liquid samples and pastes
• Consistently high accuracy across the entire measurement range
• Precise Peltier temperature control and a measured value preview which is updated every second
• Automated conversion to any measurement variables/scales
• Pre-installed scales: Refractive index, %Brix sucrose, many more scales available on request as well as customizable scales
• Up to three scales visible at the same time
• Single, interval or continuous measurement
• Low sample volume from < 0.3ml

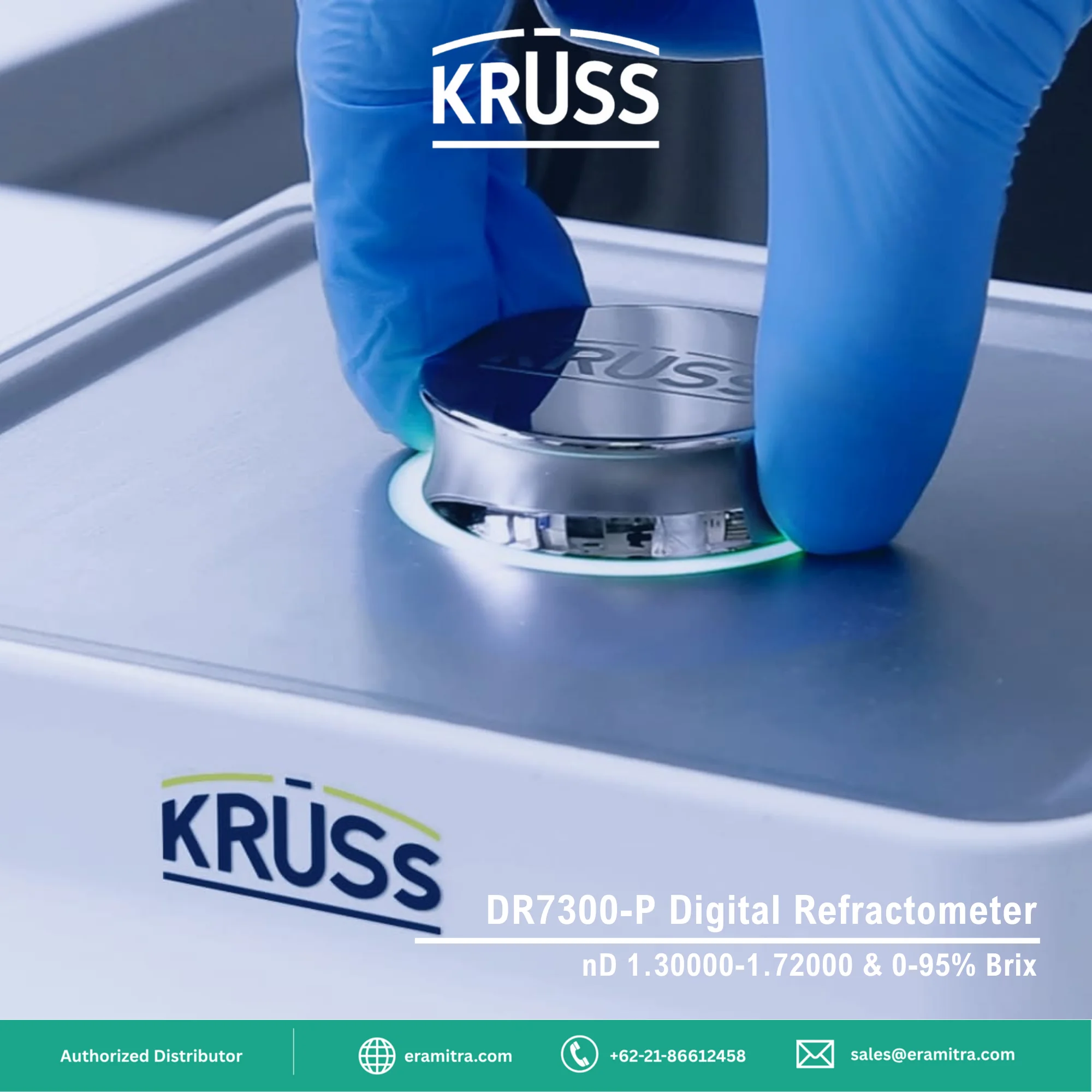

• Easy cleaning due to flat measuring recess
• Scratch-resistant sapphire prism

FEATURES

• Model diversity for adaptive use
• Large temperature control range: 10°-80°C
• Large measurement range: nD 1.3000-1.5800; 0-95%Brix
• User accounts: >10000
• Methods: >1000
• Measured data storage > 1 000 000
• Device volume <10 dB (temperature control range 15°C-30°C)
