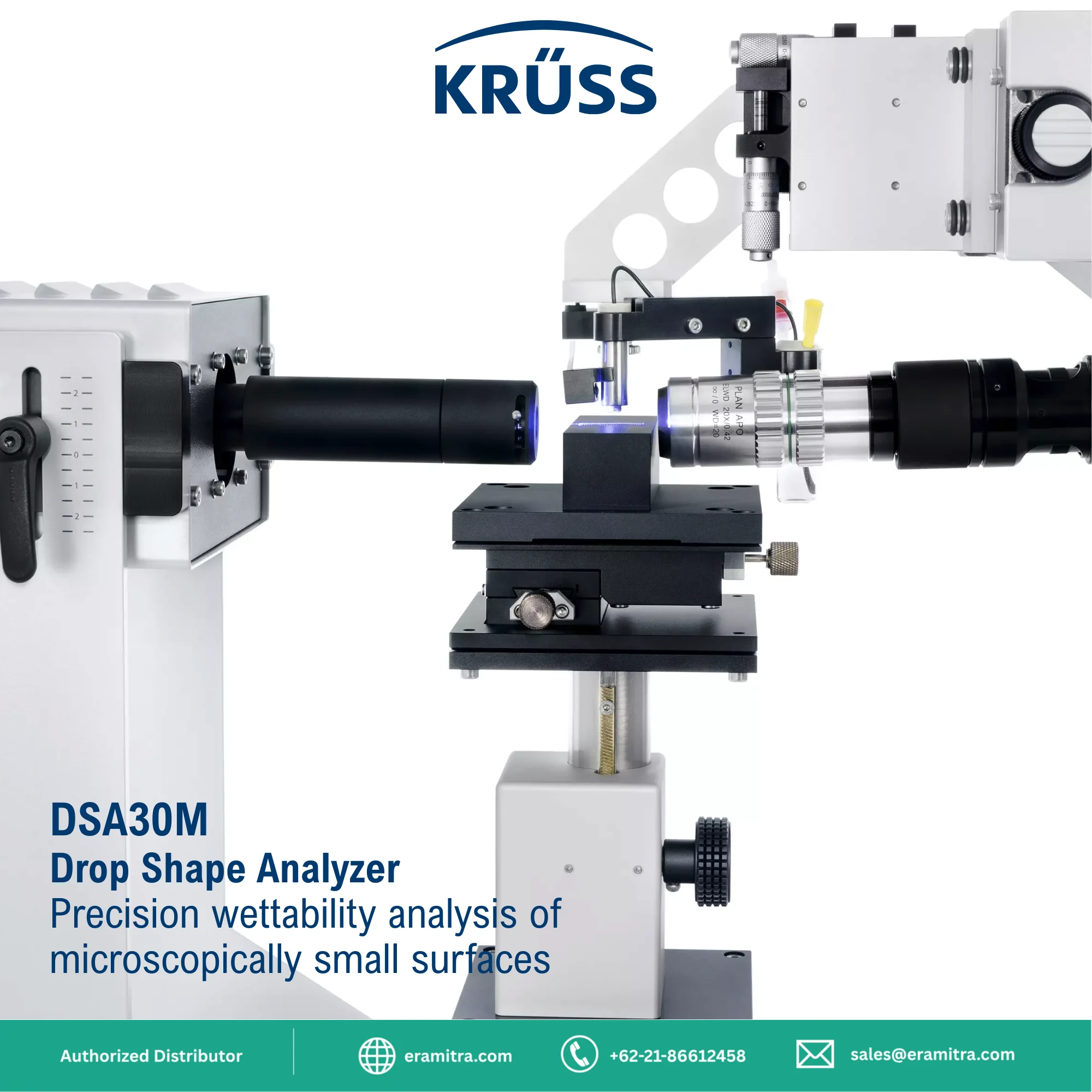

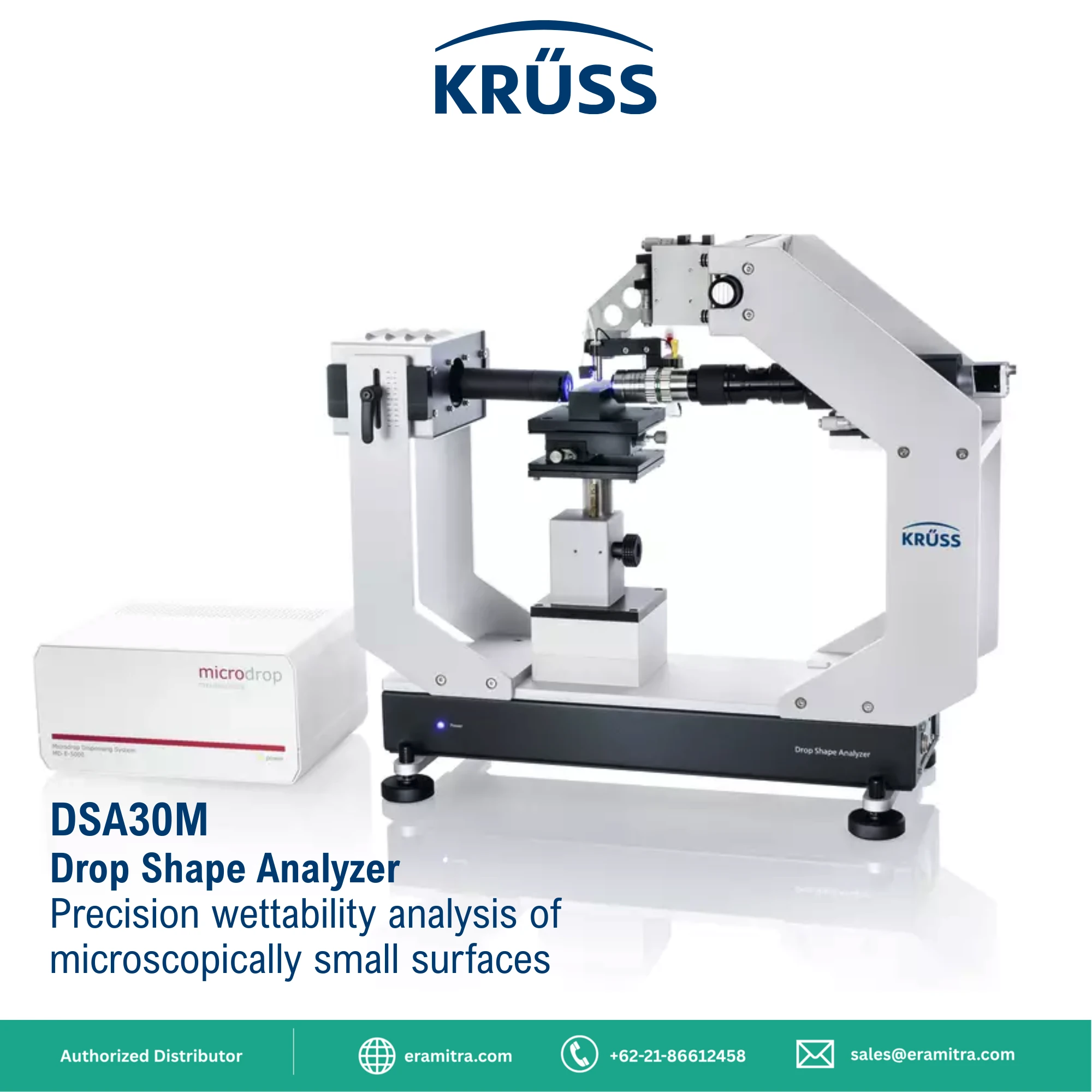

Drop Shape Analyzer

Precision wettability analysis of microscopically small surfaces

The wettability of very small surfaces can have a great influence on product quality, e.g. for contact points on circuit boards or in microfluidics. The DSA30M Drop Shape Analyzer enables drops in the picoliter range to be accurately positioned and analyzed. The resulting contact angle is exactly the information you need for optimizing wetting and coating processes on very small surfaces.

Applications

• Investigation of synthetic and natural fibers for composites

• Wettability of contact points in microelectronics

• Optimization and development of hair care products

• Wettability of biochips

• Micromechanical components, e.g. in watches

• Microfluidics

Measuring methods

• Contact angle of a drop on a solid surface
• Surface free energy of a solid using contact angle data

Measuring results

• Contact angle

• Surface free energy

• Work of adhesion between solid and liquid

• Interfacial tension between solid and liquid

• Spreading coefficient between solid and liquid
