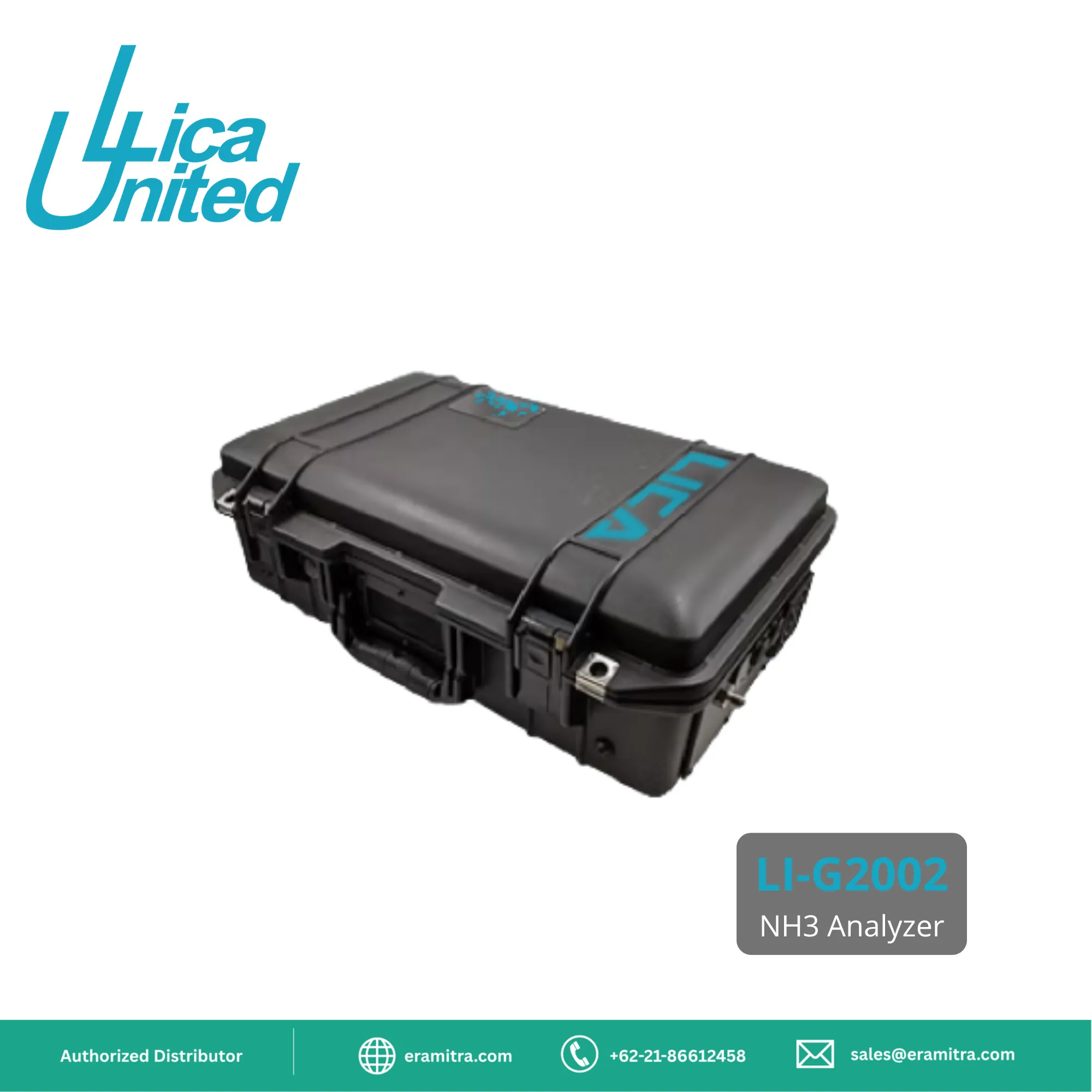

LI-G2002

NH3 Analyzer

NH₃ Measurements Made Simple

Ammonia (NH₃) is the most prevalent alkaline gas in our atmosphere, making it the main focus of atmospheric chemistry, air quality, air visibility, and ecosystem processes.

Our optical ammonia analyzer (OAA) with <1ppb (1sec, 1σ) precision is an ideal solution for ambient air quality monitoring, elucidation of particulate matter formation, livestock emissions quantification, vehicle emissions quantification, indoor air quality, and soil flux measurements.

Specifications:

Measurement Technology	ICOS / CEAS
NH₃ Measurements Dynamic Range	1ppb – 10ppm
NH₃ Measurements Precision	±1ppb (1s, 1σ) / ±0.3ppb (10s, 1σ) / ±0.1ppb (100s, 1σ)
Data Rate	1Hz
Gas Sample Flow Rate	2 SLPM (slower sample flow rate is also available)
Ambient Operating Temperature Range	5°C to 45°C
Water Dynamic Range	0 – 30,000 ppm
Ambient Humidity Range	0 - 95% R.H. non-condensing
Outputs / Connectors	UART (for data logger), USB-3 / HDMI
Network Access	Built-in WiFi
Dimensions	Pelican 1525 Air Case: 22"x14"x7.5"
Weight	~8Kg (18lbs)
Power Input	14 – 28 VDC, 2.5 A
Power Consumption	35W (user-supplied battery or wall plug operable)
Internal Data Storage	SD Card (32GB); Can store >1M readings (equivalent to 2yrs of continuous data collection)
Calibration	Infrequent
Consumables	Inlet filter
Pump	Internal
Communication Platform	WiFi
Warranty	1 yr
