Measurement of modified atmosphere with ZrO2/NDIR measuring cell;
Oxygen: 0-100Vol.-% ;
Carbon dioxide: 0–100Vol.-%;

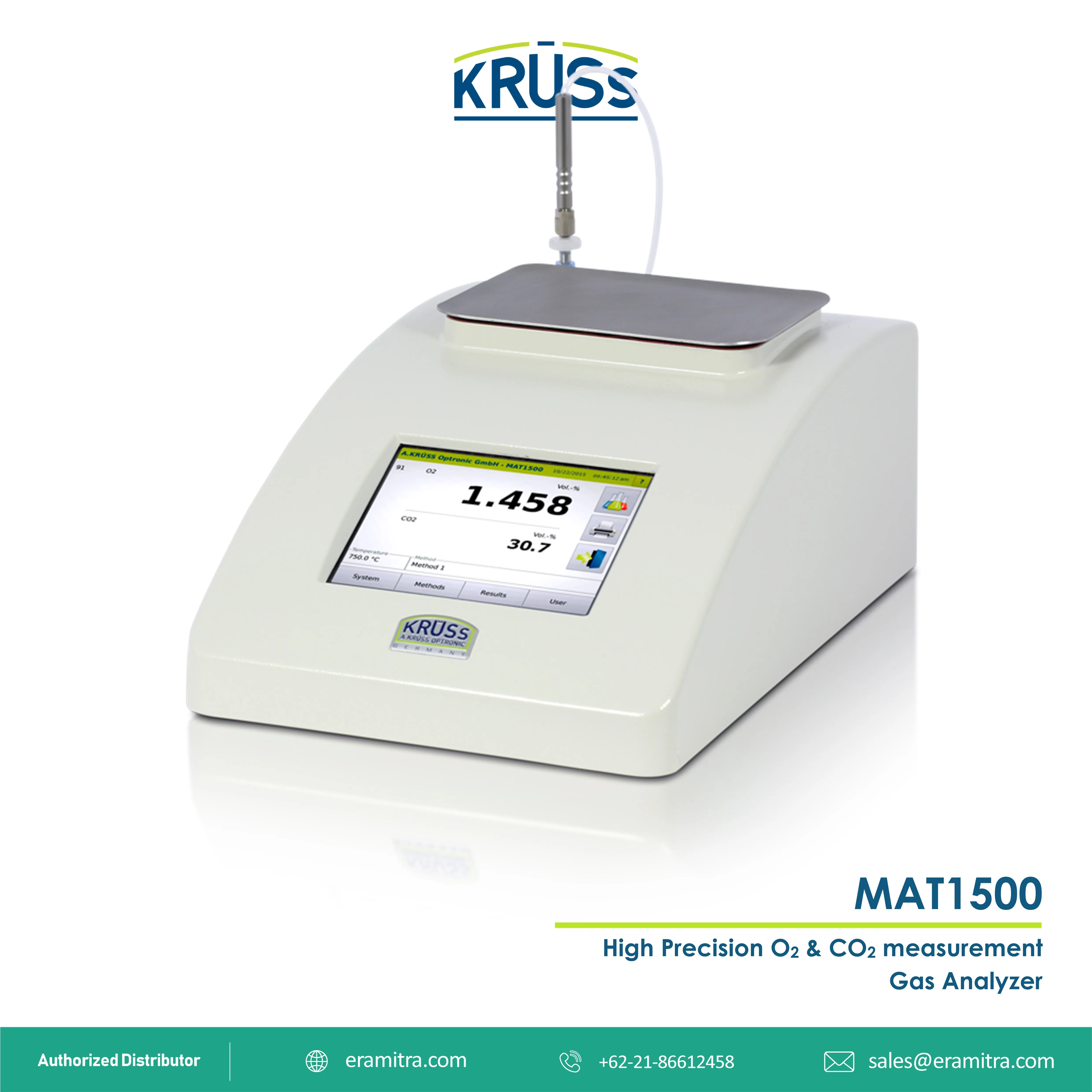

Fitted with a zirconium dioxide sensor and a nondispersive infrared sensor, the MAT1500 is our number one in terms of its range of application, performance and precision. Measurements are completed within no more than approx. ten seconds. As with the MAT1400, highly precise results can be achieved with single measurements of oxygen concentrations thanks to the min/max detection, even if only a small sample volume is available.

Basic functions

• Easy and intuitive to operate via touchscreen – even for untrained personnel
• Drift-free zirconium dioxide sensor (ZrO2) measures in the measurement range range of 0-100Vol.-%
• Low-drift non-dispersive infrared sensor (NDIR) measures in the measurement range range of 0-100Vol.-%
  with an accuracy of ±0,5Vol.-%
• Short measurement period
• Only a small sample volume required
• Various interfaces for the convenient transfer of measured values (USB, Ethernet, RS-232)
• Any number of measurement methods for monitoring the measurement process by method, batch, product and/or production line, including limit value monitoring
