Measurement of modified atmosphere with ZrO2 measuring cell;
Oxygen: 0–100Vol.-%

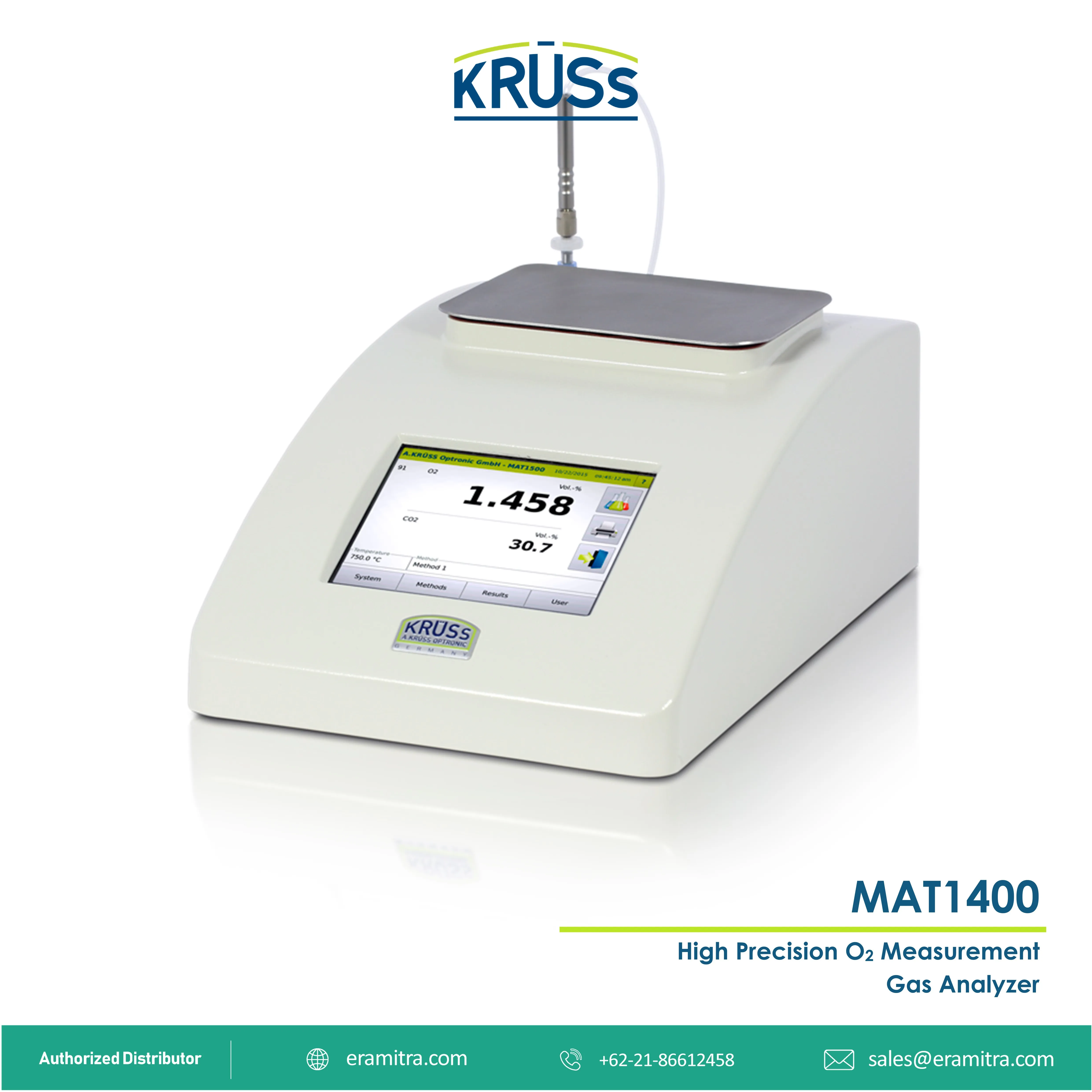

The MAT1400’s zirconium dioxide sensor (ZrO2) measures the oxygen concentration in the entire measurement range from 0-100 vol%. Especially at very low concentrations, it achieves an outstanding accuracy of ±0.02 Vol.-%. This makes the MAT1400 equally suitable for testing oxygen-free and oxygen-rich modified atmospheres. It can also be used in cold rooms from an ambient temperature of 10°C (non-condensing).

Basic functions

• Easy and intuitive to operate via touchscreen – even for untrained personnel
• Drift-free zirconium dioxide sensor (ZrO2) measures in the measurement range range of 0-100Vol.-%
• Short measurement period
• Only a small sample volume required
• Various interfaces for the convenient transfer of measured values (USB, Ethernet, RS-232)
• Any number of measurement methods for monitoring the measurement process by method, batch, product and/or production line, including limit value monitoring
• GMP-compliant analysis with a high standard of user management, self-analysis of the device and alarm limit and method settings
• Also suitable for continuous gas mixture monitoring
