It can simultaneously measure three greenhouse gases, CH4, CO2, and H2O, with high precision.
Main features
It can simultaneously measure three greenhouse gases, CH4, CO2, and H2O, with high precision.
The analyzer uses CRDS laser spectroscopy technology, and the measurement accuracy can reach the ppb level.
No computer is needed; the operation can be displayed and controlled via a mobile app, making it convenient and easy to use.
It is easy to operate, and accurate measurement results can be obtained with just one click;
Measurement results are displayed and stored directly, eliminating the need for post-processing and saving time and effort.
Powered by a lithium battery under DC power, the device is lightweight and suitable for outdoor use.
The user-friendly shoulder strap design makes it easy to carry and operate, reducing the burden.
It offers two modes: continuous concentration measurement and flux observation, to meet different research needs;
Energy consumption as low as 35W.
Research and Development Background

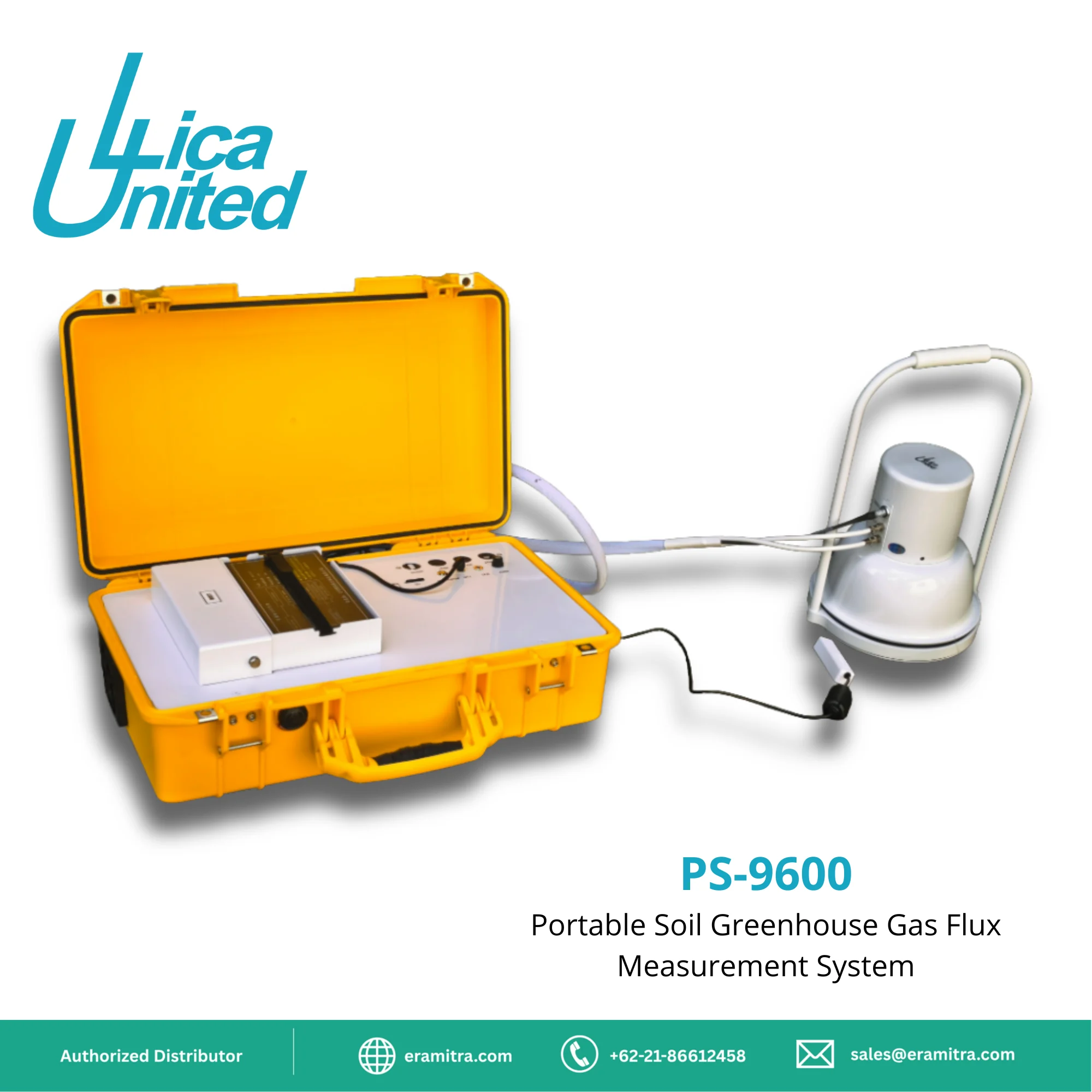

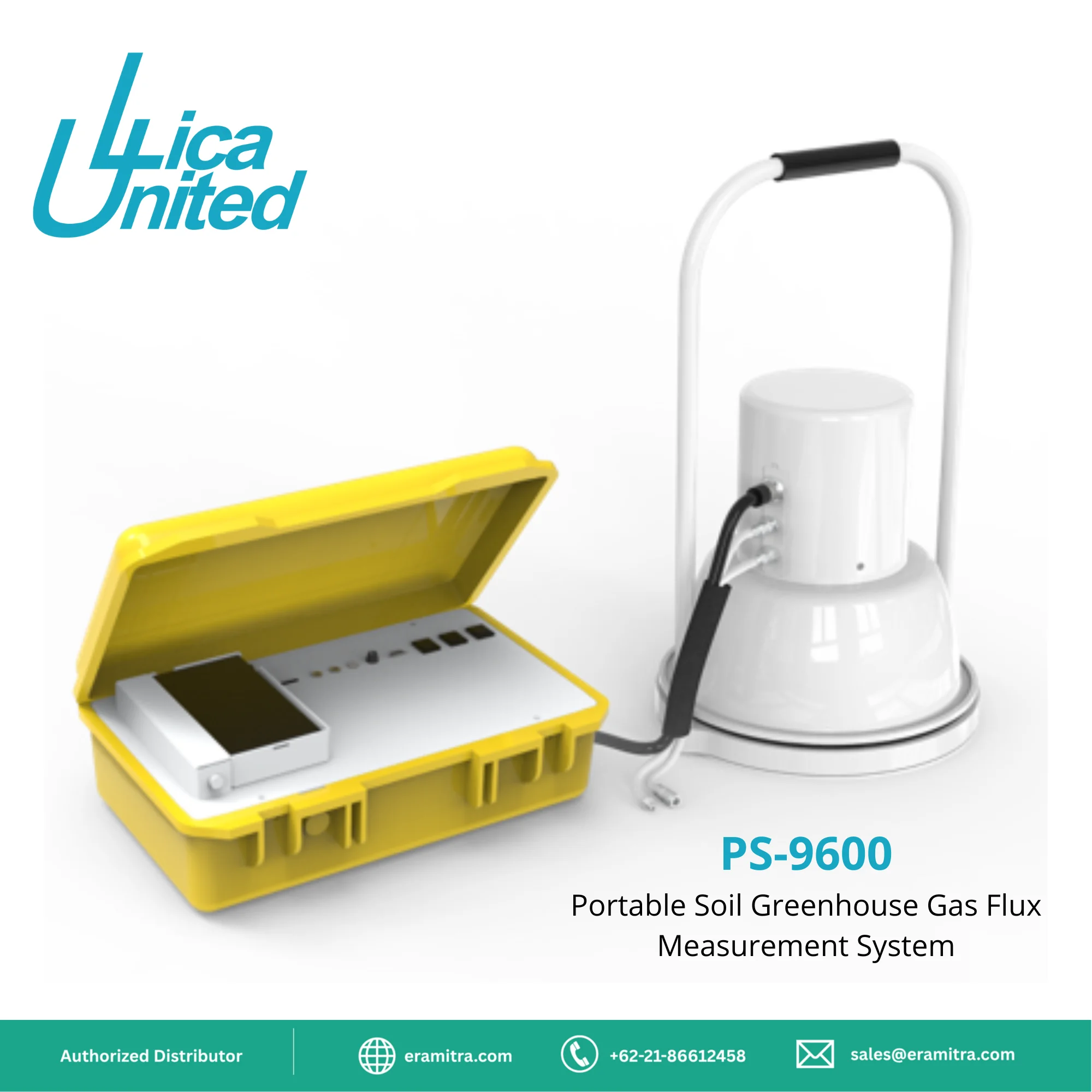

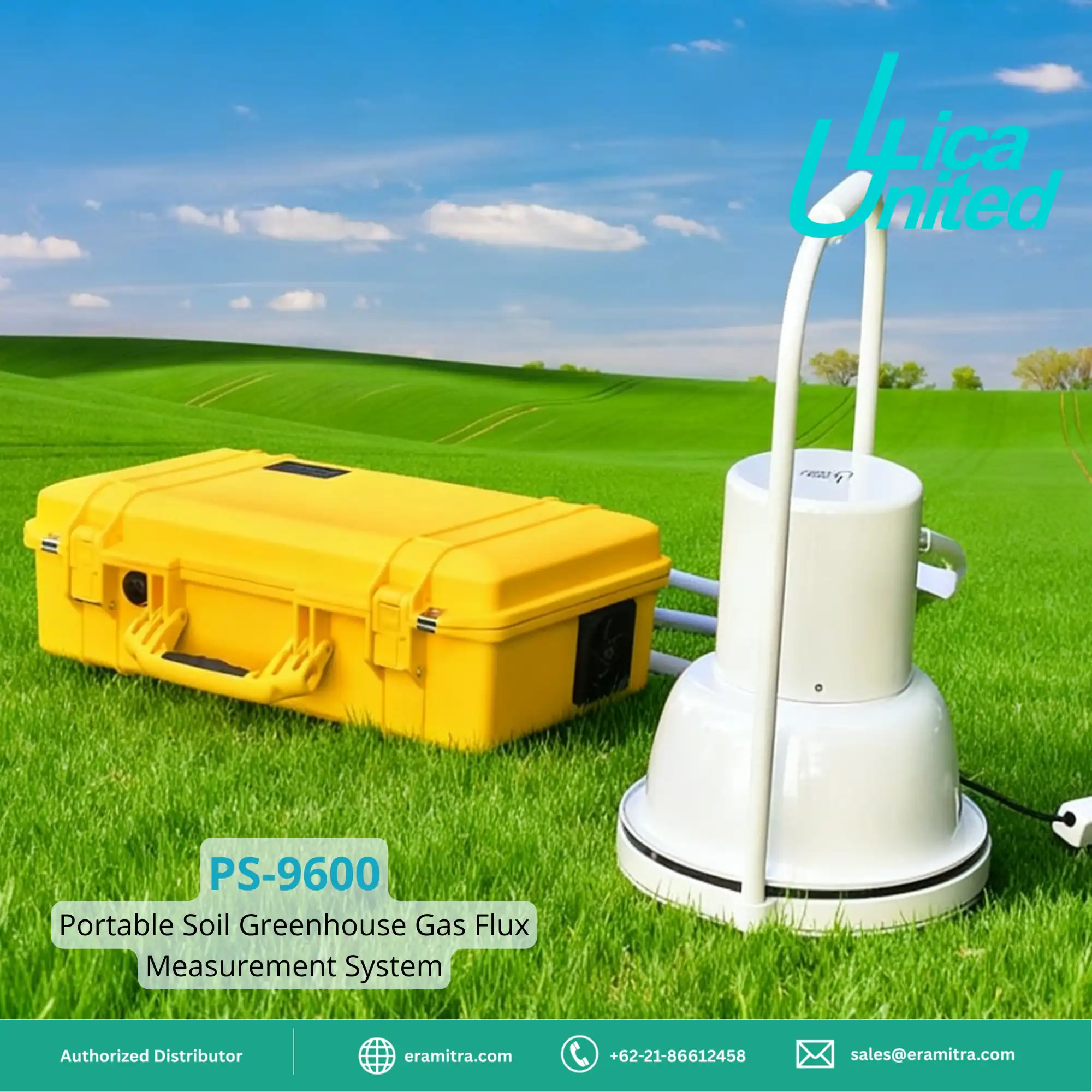

Soil is a significant source of greenhouse gases, and accurately measuring soil greenhouse gas fluxes is a crucial technology for studying global atmospheric and ecosystem changes, as well as a necessary means to achieve the "dual carbon" goal. The PS-9600 portable soil greenhouse gas flux measurement system can portablely measure the fluxes of greenhouse gases such as CO2 and CH4 in soil, contributing to the achievement of carbon neutrality goals.
Technical indicators

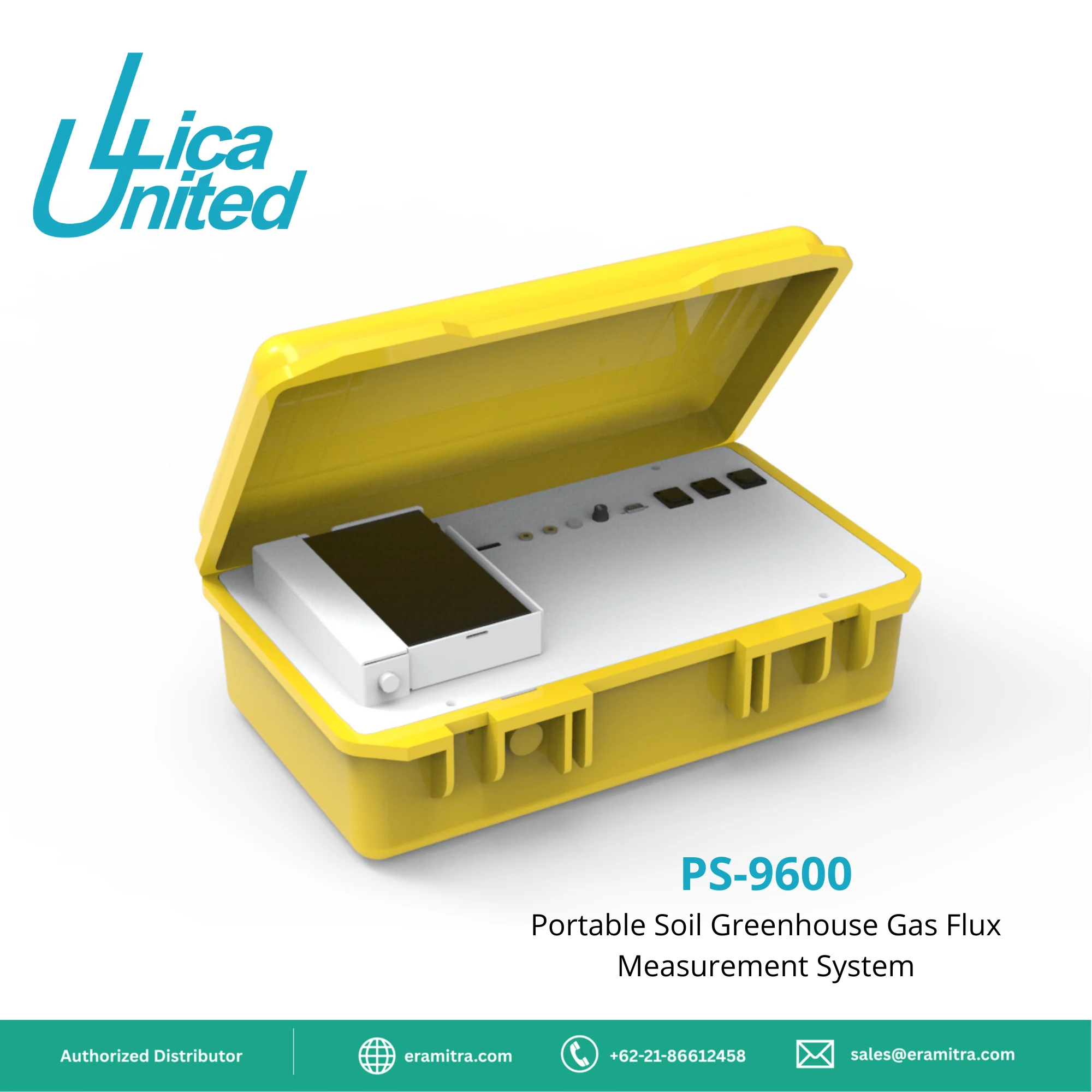

Greenhouse gas analyzer
Simultaneously measure three greenhouse gases (CH4, CO2, H2O).
Precision (1δ, 10 sec / 100 sec):
CH4: ≤1.2ppb / 0.6ppb
CO2: ≤200ppb / 150ppb
H2O: ≤65ppm / 40ppm
Measurement range:
CH4: 0-100ppm, linearity: R²≥0.9998
CO2: 0-10000ppm, linearity: R²≥0.9999
H2O: 0-3%, Linearity: R² ≥ 0.999
Control system:
Storage medium: SD card
Communication interfaces: RS-232 / SDI-12 / WIFI
Environmental conditions:
Operating temperature: -20℃ to 50℃
Size and weight:
55.38*35.5*19cm, 9kg
SC-12 Portable Automatic Soil Breathing Chamber
Dimensions: 275 (L) x 245 (W) x 445 (H) mm
Measured area: 276.27 (cm²)
Cable length: 2m
Air chamber opening and closing speed: ≤10 s
Weight: 4.05 kg
