Introduction

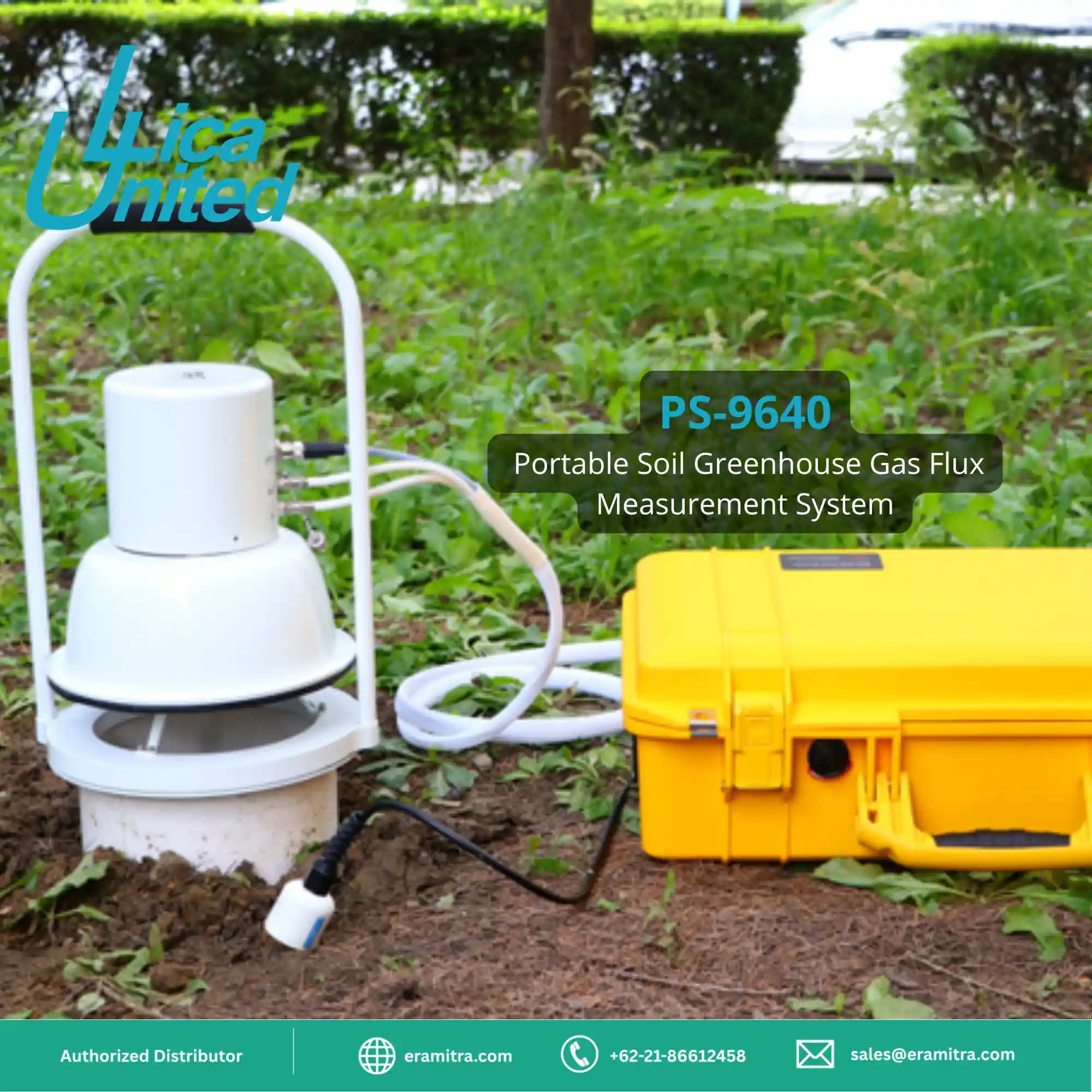

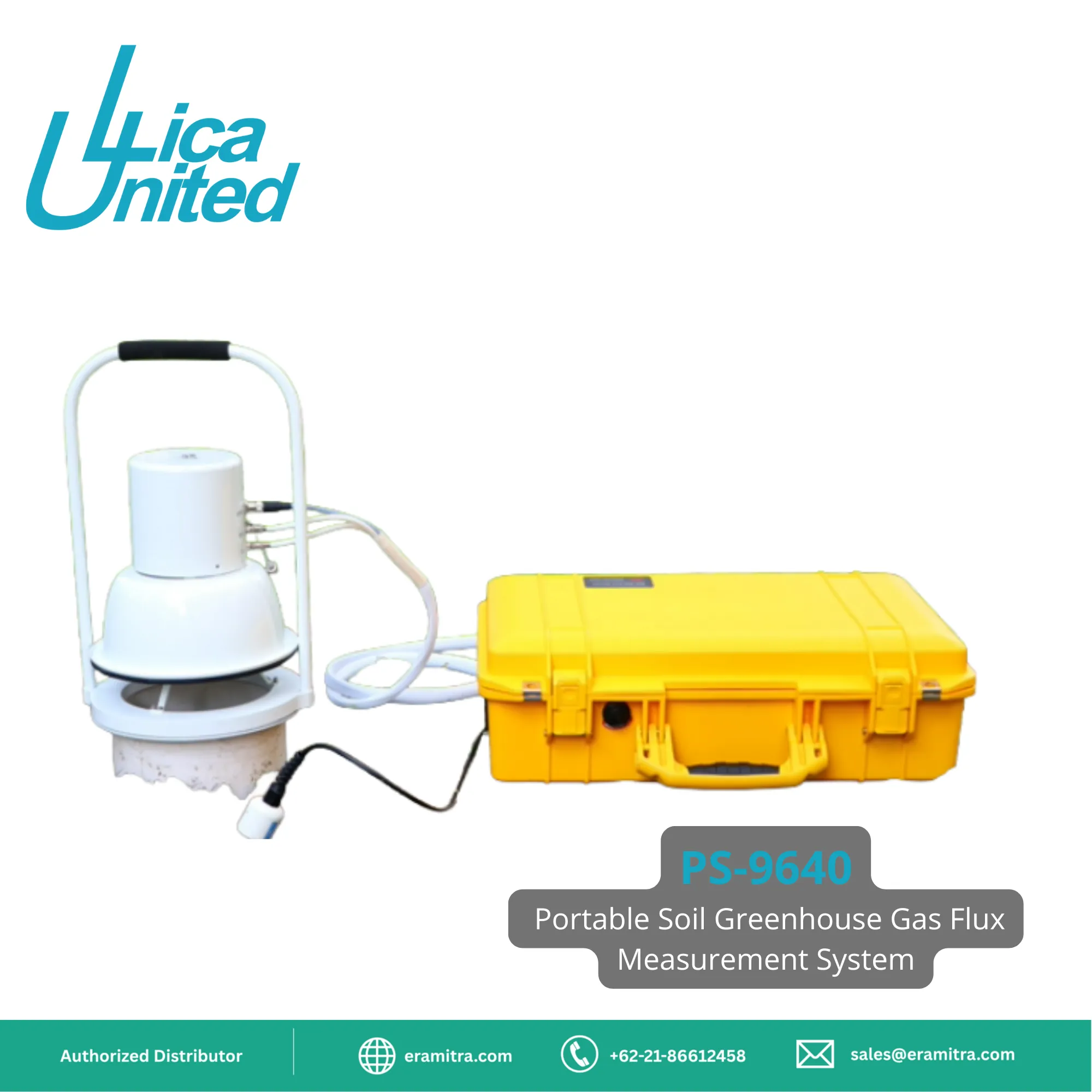

Soil is an essential source of greenhouse gases. Accurately measuring soil greenhouse gas flux is a crucial technology for studying global atmospheric environment and ecosystem changes, and it is also a necessary means to achieve the "dual carbon" goal. The PS-9640 portable soil greenhouse gas flux measurement system can measure the flux of greenhouse gases such as soil CO2，CH4 and N2O helping to achieve the goal of carbon neutrality.

Main Features

• It can simultaneously measure CH4, CO2, and N2O, with high precision.

• The analyzer utilizes CRDS laser spectroscopy technology with a ppb-level precision.

• No computer is required; the mobile phone APP can display and control the operation.

• Simple operation, one-click to obtain accurate measurement results.

• The results are directly displayed and stored, without the need for post-data processing.

• Lithium battery DC power supply, the device is lightweight and suitable for outdoor use.

• Humanized shoulder strap design, easy to carry and operate, reducing the burden.

• Provides continuous concentration and flux observation to meet research needs.

• Energy consumption is 35w.



Specification

Greenhouse Gas Analyzer

• Precision（1σ，1s） ：

CH4：< 2 ppb

CO2：< 440 ppb

N2O：< 200 ppt



• Measurement Range ：

CH4：1 – 200 ppm

CO2：10 ppm – 100,000 ppm

N2O：2 ppb – 500 ppm



• PS-9600 Console

Data Storage： SD Card

Interface： RS-232 / SDI-12 / WIFI



• SC-15 Portable Soil Flux Chamber

Measurement Area：276.27 cm²

Measurement Volume：436.13 cm³

Temperature Detection：Range: -25-85℃  Accuracy: ±0.5℃

Operating Environment：-20-60℃

Instrument Power：＜12W

Cable Length：2 meters

Product Dimensions：25.5X25.5X40.6 cm

Product Weight：4.55kg (including cable)
