Compatibility and extensions as you wish

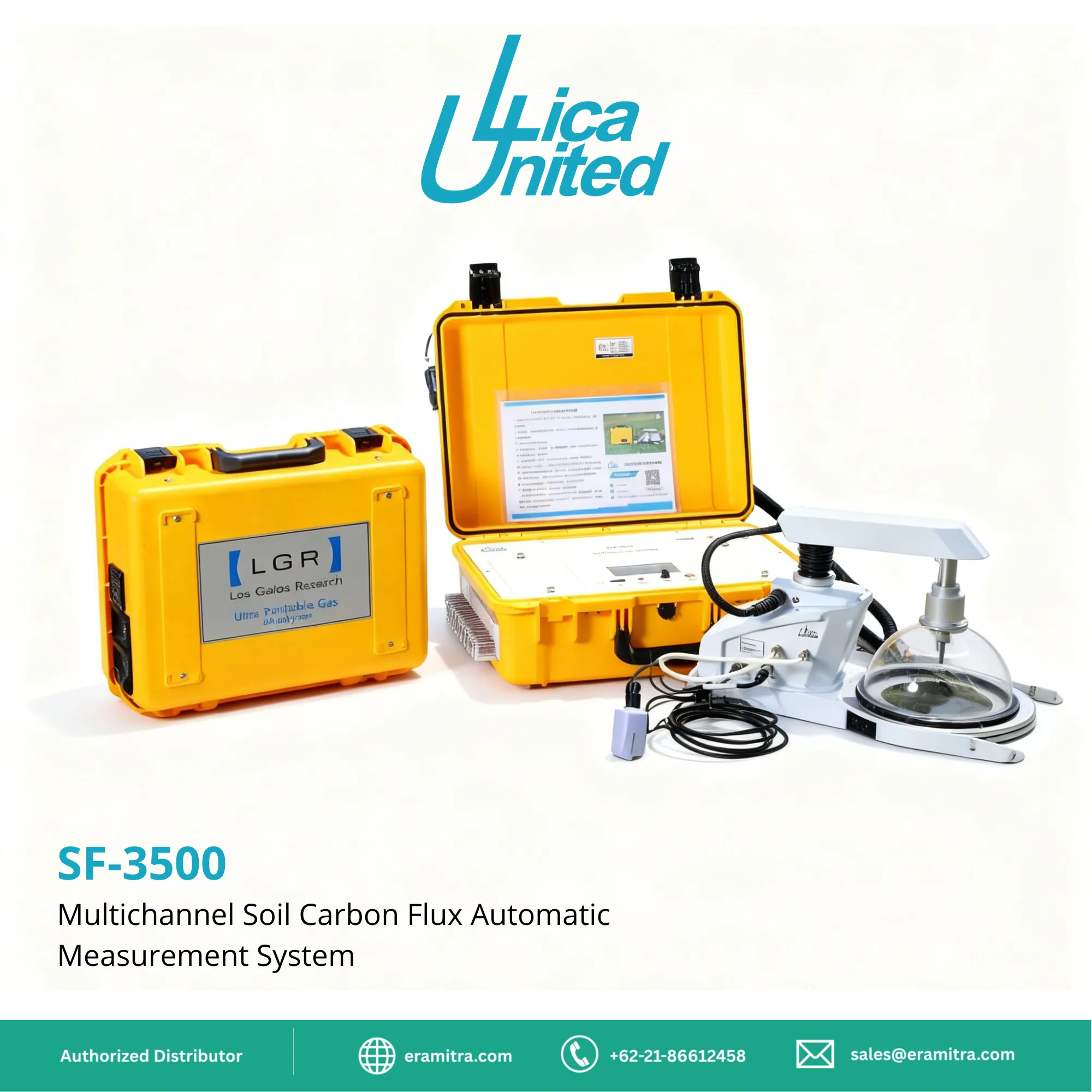

To address the spatiotemporal variability of soil gas fluxes, LICA has developed the new SF-3500 multi-channel fully automated soil gas flux measurement system. The SF-3500 can be connected to various gas analyzers and gaseous stable isotope analyzers to measure the soil fluxes of multiple gases. It also allows for sequential switching and measurement of multiple flux chambers, with the concentration within each chamber automatically recovering to background values, enabling long-term, continuous monitoring of soil gas fluxes at multiple locations.
The SF-3500 can connect to multiple analyzers for simultaneous measurement of multi-parameter fluxes, reducing systematic errors in multi-system measurements. It features an LCD touchscreen and Android mobile app control and display, eliminating the need for computer setup and display. Remote control and data transmission capabilities simplify instrument maintenance, making it more suitable for long-term field measurements. Extensive testing has proven the SF-3500's superior accuracy and stability, making it ideal for long-term field use.
Main features
It can be used in conjunction with various gas analyzers to measure the flux of gases such as CH4, CO2, and H2O, or to measure gases such as ¹³CO2 and ¹²C¹⁸O¹⁶O.
Synchronous measurement of isotope gas flux eliminates systematic errors in multi-system measurements.
Controlled and displayed via LCD touchscreen and Android mobile app, no computer required.
Gas flux is calculated automatically, eliminating the need for post-processing.
Remote control and data transmission capabilities make instrument maintenance easier and simpler, making it more suitable for long-term field measurements.
SF-3500 Multiplexer
| Number of breathing chamber interfaces | 9 or 18 |
| storage media | SD card |
| Communication interface | Bluetooth, WIFI |
| Work environment | Temperature: -20 to 45℃ |
| humidity | 0~95% RH (non-condensing) |
SC-22 Fully Automated Soil Respiration Measurement Chamber
| Measured area | 276.27 cm2 |
| fixed volume of air chamber | 3243.8 cm3 |
| Cable length | 15m |
| pump | 3.5L/min |
| Operating temperature | -20 to 45℃ |
| size | 32 x 28 x 55 cm |
LI-G3001 Greenhouse Gas Analyzer
Principle: CRDS laser spectroscopy technology simultaneously measures three greenhouse gases (CH4, CO2, H2O).
Precision (1δ, 10 sec / 100 sec) :
| CH4 | ≤1.2ppb / 0.6ppb |
| CO2 | ≤200ppb / 150ppb |
| H2O | ≤65ppm / 40ppm |
Measurement range:
| CH4 | 0-100ppm, linearity: R²≥0.9998 |
| CO2 | 0-10000ppm, linearity: R²≥0.9999 |
| H2O | 0-3%, linear: R² ≥ 0.999 |
Environmental conditions:
Operating temperature: -20 ℃ to 50 ℃
Size and weight:
55.38*35.5*19cm , 8kg
