Multi-point measurement of soil CO2 flux can connect up to 18 respiration chambers, enabling continuous, long-term monitoring of soil carbon flux.
Product Introduction:

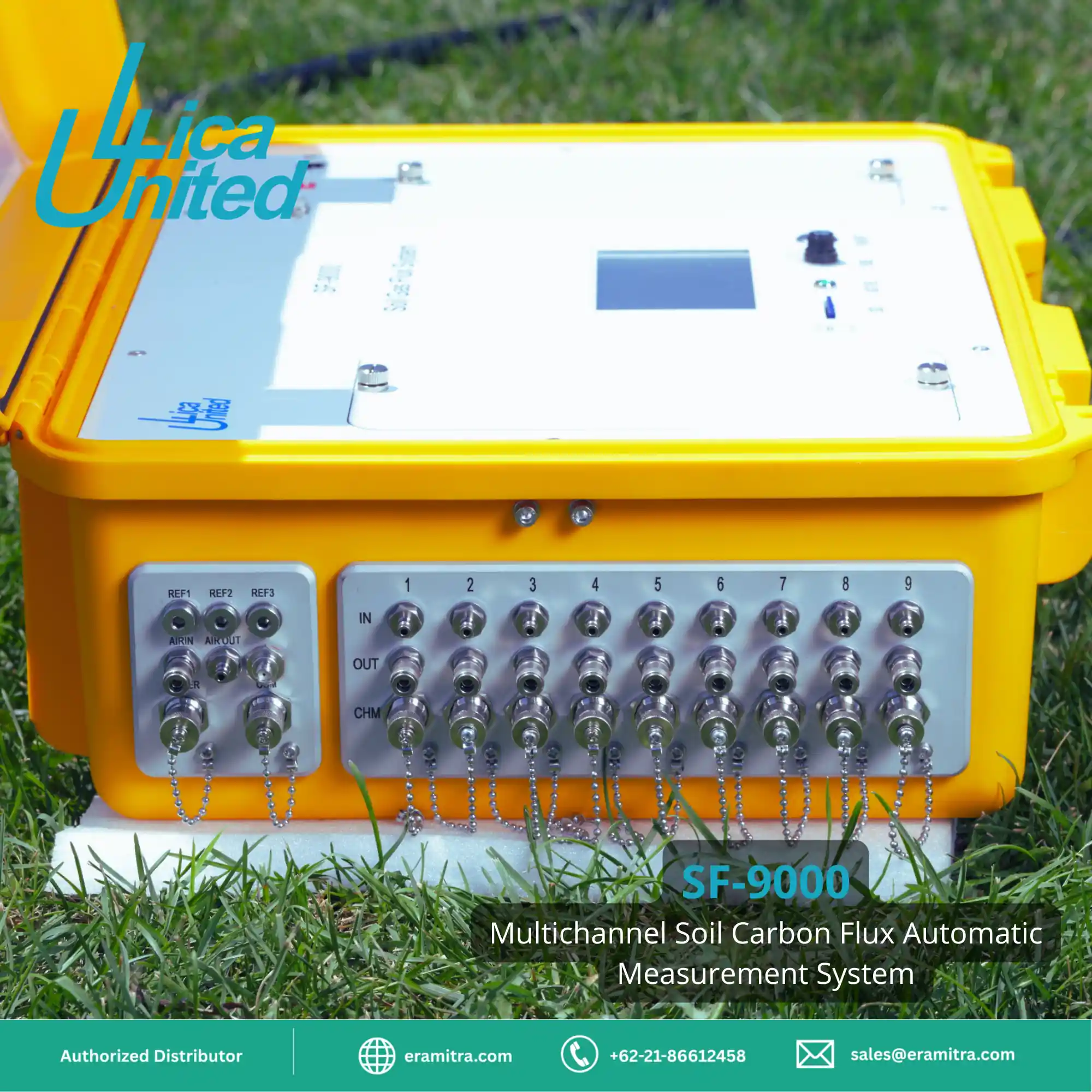

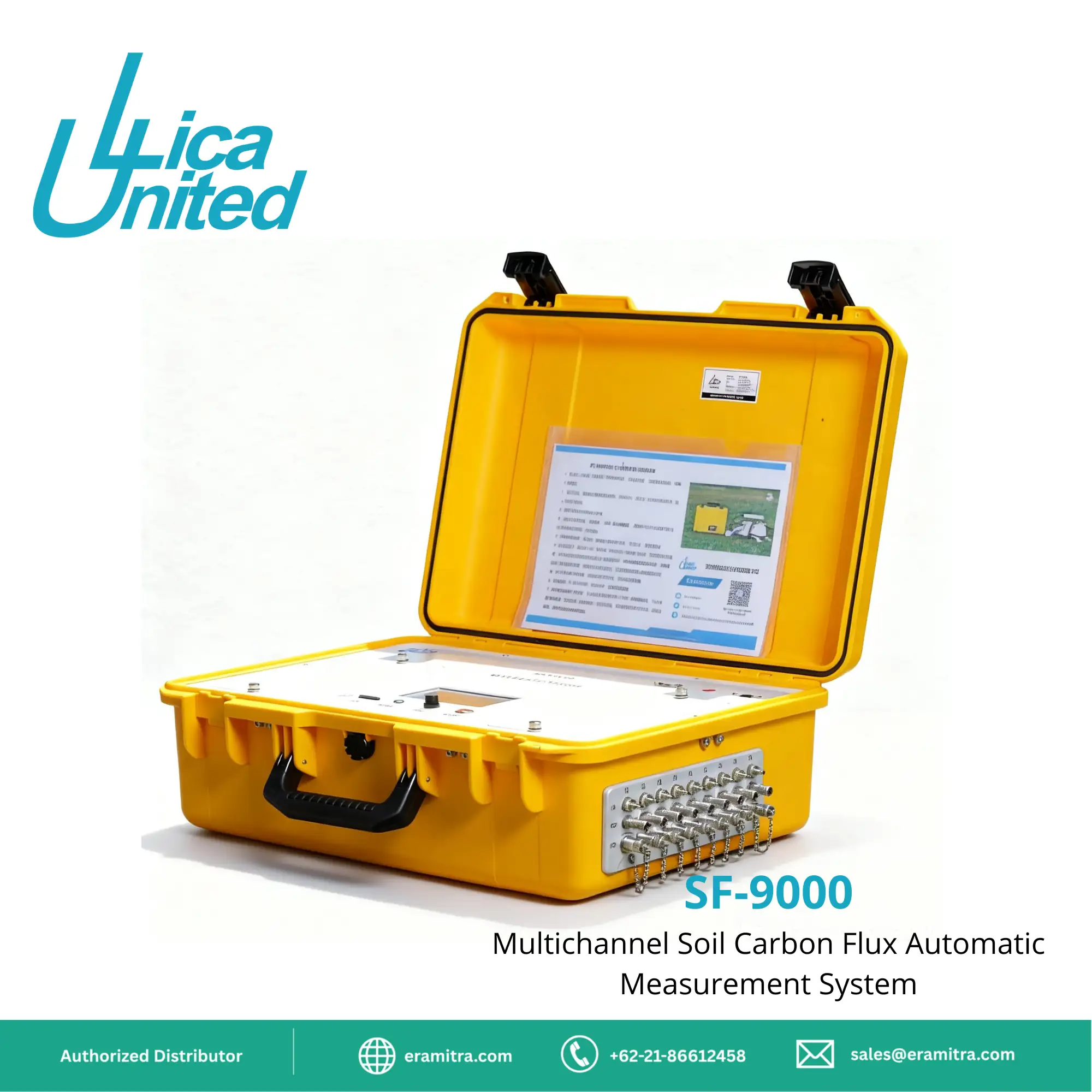

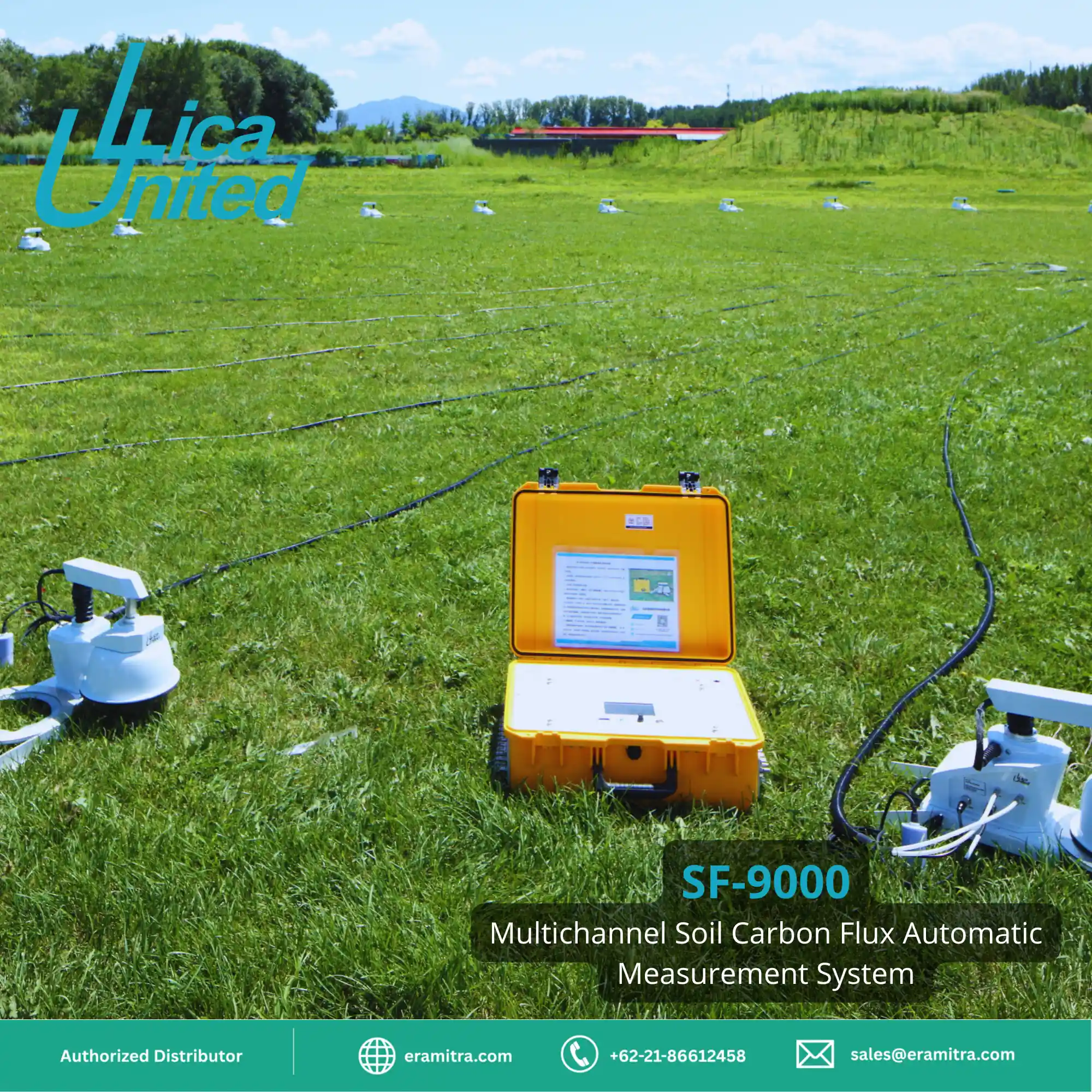

LICA's SF-9000 multi-channel fully automated soil carbon flux measurement system can measure soil CO2 flux at multiple points , enabling continuous, long-term monitoring of soil carbon flux. It can connect to up to 18 respiration chambers. The SF-9000 can also be used for CO2 and water vapor profile studies.
Features:
• Control system can connect up to 18 breathing chambers, making it more suitable for experimental designs with multiple repetitions and multiple treatments;
• Long-term field monitoring without human intervention can achieve continuous, high-precision, fully automated unattended monitoring;
• Automatically calculates gas flux, eliminating the need for post-processing.
• Measuring chamber can be connected to auxiliary sensors such as soil temperature and soil moisture.
• Instrument is lightweight and consumes little energy; the entire system is robust and durable.
• Storage medium: SD card
Technical Specifications:
SF-9000 :
| Measurement principle | Measurement principle: Nondispersive infrared |
| Measurement range | CO2: 0 - 6000 ppm |
| H2O: 0 - 60000 ppm | |
| Accuracy | <1% of the reading value |
| Repeatability/Accuracy | < 1 ppm |
| Operating temperature | -20 to 60 ℃ |
| Number of breathing chamber interfaces | 9 or 18 |
| storage media | SD card |
| Communication interface | RS-232 / RS-485 / SDI-12 |
| Synchronous pump | 4.2 L/min brushless diaphragm pump |
| show | 7-inch LCD touchscreen |
SC-22 Fully Automated Soil Respiration Measurement Chamber
| Measured area | 276.27 (cm2) |
| fixed volume of air chamber | 3243.8 (cm3) |
| Cable length | 15m |
| pump | 3.5L/min |
| Operating temperature | -20 to 45℃ |
| size | 32 x 28 x 55 cm |
Soil temperature and humidity sensor
| Humidity measurement range | 0~60% |
| accuracy |
3% (0-50% mineral soil). +1% (soil-specific standard) |
| Temperature measurement range | -40 to 80 ℃ |
| accuracy |
The accuracy is ±0.2℃ (-20 to +50℃). ±0.4℃ (Other) |
| Cable length | 2 m |
